詳細說明
 |  |  |  | |||
| Specilization | Standardization | Serialization | Intelligentization | |||
We established a professional team focusing on livestock and poultry farming, extensively connecting the industry, and deeply understanding the industry needs. We grasp future development trends and refine efficient solutions. | All our actions are for the needs and development trends of livestock and poultry farming. Design and formulate unified standards for quality, parameters, and performance for products. | We reasonably plan and develop a series of products to meet different needs according to demands so that customers can obtain high-quality professional motors in one stop. | We provide a digital base to visualize breeding data, realize unattended, remote control, and automatic management of production equipment, and promote the development of livestock and poultry breeding in standardization and scale. |
 |  |  |  | |||
| Durability | Low energy | Strong overload | Large torque | |||
No wearing parts such as brushes and collector rings. IP67 dustproof and waterproof. Multiple protections such as WF1 anti-corrosion, F-class insulation, overcurrent, overload, overvoltage, undervoltage, overheating, etc. More stable and durable. | Energy efficiency level IE5. Permanent magnet excitation, no current excitation. High power factor, No rotor consumption. Energy saving up to 60% or more. | Greatly avoid the risk of burn-in and frequent shutdown within the range of temperature protection. | They can run at a very low speed and constant torque under the premise of ensuring high efficiency and energy saving, which is different from the low efficiency of traditional motors at low speed and high torque. |
 |  |  |  | |||
| Small in size | Light in weight | Low noise | Stepless speed | |||
Simple and small structure compared with traditional motors due to fewer components such as brushes, collector rings, rotor copper wire windings, and commutators. | Simple structure, and light in weight compared with traditional motors due to fewer components such as brushes, collector rings, rotor copper wire windings, and commutators. | Brushless rotors are driven by permanent magnets. High-quality brand bearings and outer dynamic balance rings are applied. Magnetic circuit designs are excellent. Those help to achieve low-noise operations. | Brushless operation technology was adopted for precise speed regulation. 0~10V analog, RS485 speed regulation, and ultra-wide speed regulation ratio. No gear with smooth speed regulation. |
| High Biosecurity | Good Animal Welfare | High Production Efficiency | ||

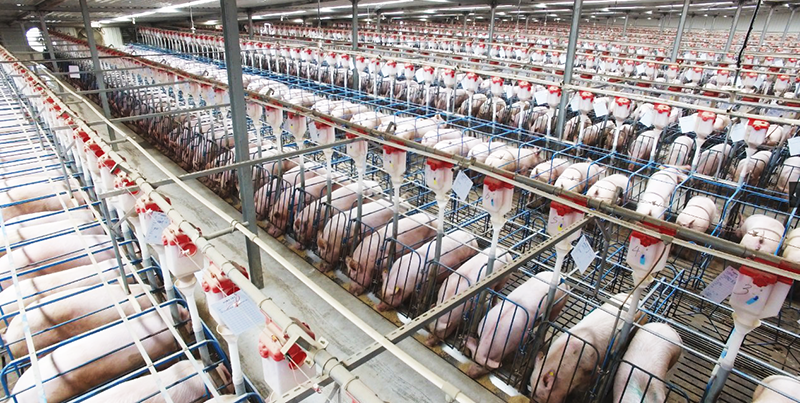

The ventilation flow can be regulated and equipment like manure scrapers can be started and stopped automatically according to the data collected by the linkage devices. So, the breeding house can always be kept away from the dirty, sultry, and humidity. Under unattended and remote intelligent control, animals can be isolated from infectious agents possibly carried by people and vehicles. | Precise and quantitative feeding to avoid an excessive diet of livestock and poultry. The intelligent linkage between equipments can timely and accurately perceive the changes in the environment in the breeding house, which realizes intelligent ventilation control and ensure the livestock and poultry are always in a comfortable and healthy living environment. | Energy efficiency grade IE5, energy saving up to 60% or more. Stable and reliable operation. Low maintenance cost. Good animal welfare can help to shorten the production cycles and ultimately imcreases production efficiency. |
| Specialized Products | Intelligent Farming | |
The motors are specifically designed and developed for the needs of the feeding line system. The feeding conditions of different growth stages of livestock and poultry are fully considered. Those motors are standardized, serialized, and dedicated to providing efficient solutions. | Visualization of data and operations. Equipment interconnection makes an automatic start, stop, and speed regulation available according to the preset commands. Realization of unattended operation, remote control at multiple terminals, and other intelligent management. |
| Energy Efficiency Rate: IE5 | Mechanism: Direct drive |
| Control Method: Modbus, 0~10V, digital input | Input Voltage: 380V AC |
| Protection Grade: IP67 dustproof and waterproof, WF1 anti-corrosion | Input Frequency: 50Hz / 60Hz |
| Rotation Direction: Clockwise / anticlockwise (optional) | Operating Temperature: -20℃ ~ +50℃ |
| Installation Method: Horizontal, axial flange | Operating Humidity: 10% ~ 95% |
| Housing's Material: Aluminum alloy | Motor Structure: Integrated |
| Protection Method: Softwares and hardwares' overvoltage and undervoltage; Driver's overtemperature, overcurrent, and overload. | |
| Model | Rated Power (kW) | Rated Voltage(V) | Speed Range(rpm) | Efficiency Class |
| MSA145-7514F-F3FA | 0.75 | 380 / 220 | 200~1500 | IE5 |
| MSA145-1114E-F3FB | 1.1 | 380 / 220 | 200~1500 | IE5 |
| MSA145-1514E-F3FA | 1.5 | 380 / 220 | 200~1500 | IE5 |
| MSA145-2214E-F3FB | 2.2 | 380 / 220 | 200~1500 | IE5 |
| MSA160-3014E-F3FB | 3.0 | 380 | 200~1500 | IE5 |
| MSA185-4014E-F3FB | 4.0 | 380 | 200~1500 | IE5 |
